Two Component Road Line Marking Machine Scraping Street Striping Marking Machine

  • 1
  • 2

Brand Name : WAGE

Model Number : HG 20MM II

Certification : EMS， OHSMS

Place of Origin : China

MOQ : 1 set

Price : 2400-2600usd per set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 sets per week

Delivery Time : 1 to 3 weeks

Packaging Details : box

marking model : two components

dispenser : self droping

paint cylinder volume : 60L x2

glass cylinder : 25kg

Air Pressure : 0.4-0.6MPa

Capacity : 100L/min

Dimensions : 1400*800*1100mm

Frequency : 50Hz

Material : Stainless Steel

Power : 2.2KW

Power Source : Electric

Product Name : Two Component Road Marking Machine

Spray Speed : 3-7m/min

Spray Thickness : 1-4mm

Spray Width : 50-400mm

Type : Automatic

Voltage : 220V

Weight : 200kg

Contact Now

Scraping two compoent road marking machine

Scraping two compoent road marking machine

Two Component Road Line Marking Machine Scraping Street Striping Marking Machine

General information:

two-component marking series is divided into spraying and scraping two construction processes, two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of environmental protection, high wear resistance, good reflectivity, long service life and easy construction.

Two Component Road Line Marking Machine Scraping Street Striping Marking Machine

HG-20MM-II is to put two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of thicker marking thickness, longer wear resistance, better reflectivity and more uniform mixing.

Parameter:

HG-20MM-Ⅱ
Marking mode Double compartment scraping
Agitation speed 650r/min
Glass Micro sphere cylinder capacity 25kg
Spraying system Self dropping
Paint cylinder capacity 60L/ tank x 2个cylinder
Marking thickness 1.2-2.5mm adjustment within ranges
Standard thickness 150mm
Width optional 100/200/300/400/450mm(scoops replacement)
Size (L*W*h) 1200*900*1100mm
Weight 162kg

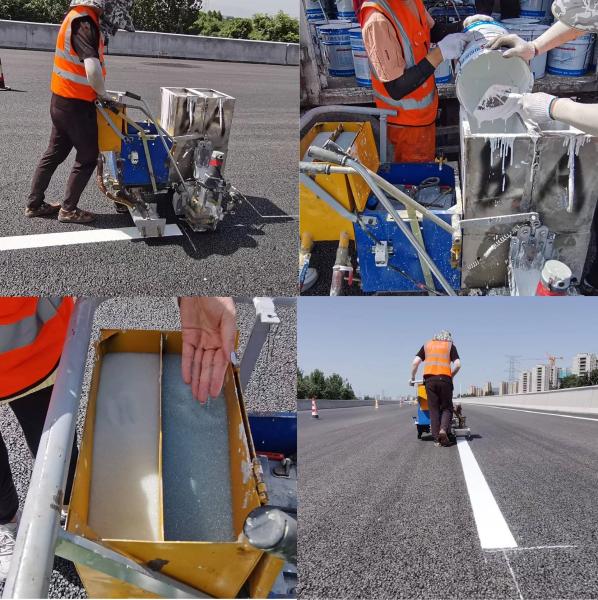

Construction:

Two Component Road Line Marking Machine Scraping Street Striping Marking Machine

Contact:

Rita QU
Xi'an Wage Traffic Infrastructure Installation Co.,LTD
Mail: wagetraffic@hotmail.com Cell/ Whatsapp: +86 15591818803
Add:Room 401, Unit 2, Bilding 2, Shenglong Plaza, Weiyang Road, Xi'an, 710016, Shaanxi, China
